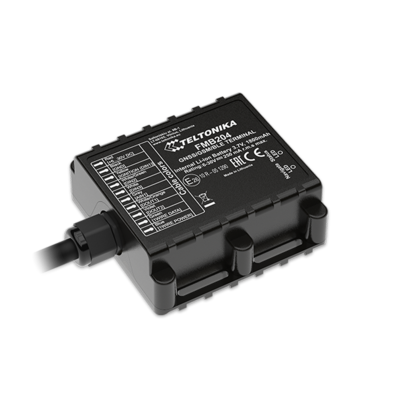

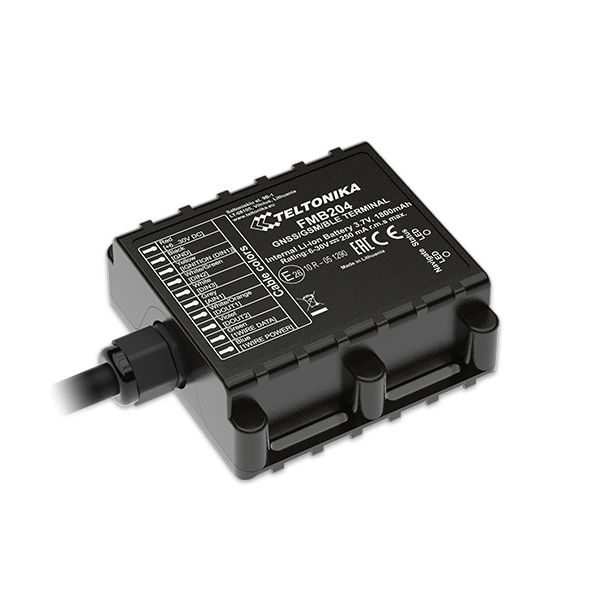

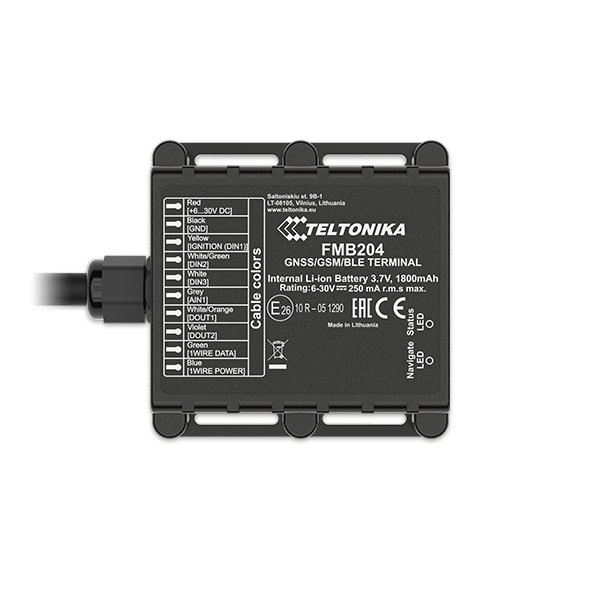

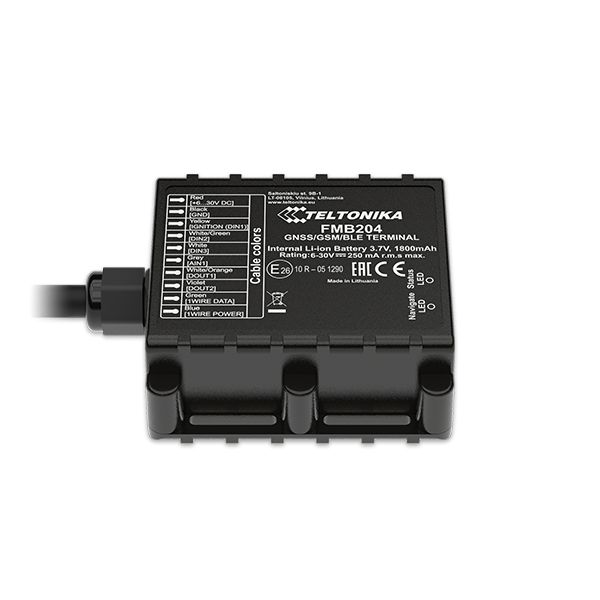

Teltonika FMB204 (All-in-one Package)
Small and professional tracker
- 2 years warranty, no contracts
- In stock, ships in 2 business days
No payment now. Formal quote by email within 1 business day.
Description
Specifications
| Module | |
| Name | TM2500 |
| Technology | GPRS+GPS+BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | Tracking: 33/99 acquisition channels |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| Technology | UMTS/HSPA+, GSM/GPRS/EDGE |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| 3G bands | 850 / 900 / 1700 / 1900 / 2100 MHz |
| Data transfer | HSPA+ uplink up to 5,76 Mbps, downlink up to 14.4 Mbps, UMTS uplink/downlink up to 384 Kbps, EDGE uplink/downlink up to 236.8 Kbps, GPRS and EDGE class 12 |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | Li-Polymer rechargeable battery, 3.7 V, 170 mAh |
| Power consumption | At 12V < 2,2 mA (Ultra Deep Sleep), At 12V < 4,5 mA (Deep Sleep), At 12V < 5 mA (Online Sleep), At 12V < 12 mA (GPS Sleep), At 12V < 35 mA (nominal) |
| Blue-tooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset |
| Interface | |
| Digital Inputs | 1 |
| Digital Outputs | 0 |
| Analog Inputs | 0 |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | Micro USB socket |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Physical specification | |
| Dimensions | L(50,7mm)xW(49,6mm)xH(25mm) |
| Weight | 63 g |
| Operating environment | |
| Operating temperature | -25 °C to +55 °C |
| Storage temperature | -40 °C to +70 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, FMB Configurator (USB, Blue-tooth), FMBT mobile application, BTAPP mobile application |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | OBD II |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM |
| Certification & Approvals | |
| Regulatory | FCC, E-Mark, RoHS, REACH |
| GSM/GPRS/GPS/BLUETOOTH |
