Teltonika FMC130 4G (All-in-one Package) Advanced GPS tracker with internal high gain GNSS and 3G antennas, internal backup battery
- $114 Teltonika FMC130 (4G)
-
$0 All-in-one Package RECOMMENDED
- Free worldwide shipping
- No contracts
- 2 years warranty
*Subscription includes GPS tracking software, mobile app and SIM with cellular data service with nearly worldwide roaming (full list of supported countries here).
Description

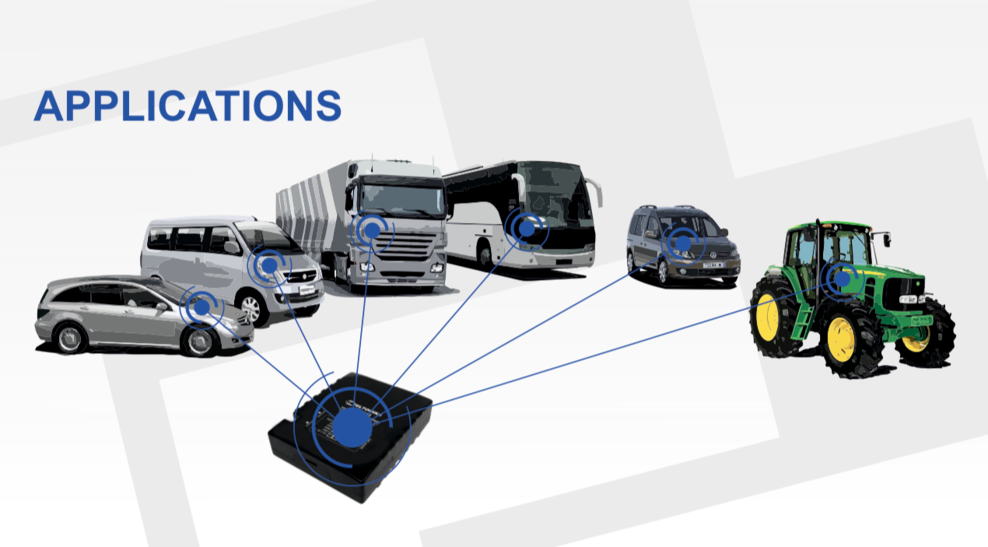

FMC130 is small and professional real-time tracking terminal with GNSS and 4G/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and 4G modules, internal GNSS, 4G antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.
Various vehicle CAN dataWith additional Teltonika Vehicle CAN adapter you will be able to acquire CAN data from any kind of transport such as light vehicles, trucks, buses, agriculture transport, and special transport. Supported vehicles list contains more than 1800 models.
Internal battery
Feel safe when vehicle is monitored by device with internal battery. When vehicle battery is disconnected, device still remains online and sends data to server
Features
Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming*
* Jamming detection feature supported only on hardware with SLM320-E and SLM320-LA
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS: Configuration, Events, DOUT control, Debug
GPRS commands: Configuration, DOUT control, Debug
Time Synchronization: GNSS, NITZ, NTP
Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
Specifications
| MODULE | |
| Name | FMC130-MCIB0: MeiG SLM320-LA with Teltonika TM2500 |
| Technology | LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS |
| Protocol compatible | NMEA, GGA, GGL, GSA, GSV, RMC, VTG |
| Receiver | Tracking: 33/99 acquisition channels |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | LTE Cat 1, GSM |
| 2G bands | UC15-A: B5/B8/B3/B2 UC15-T: B5/B8/B3/B2 UG96: B5/B8/B3/B2 |
| 3G bands | UC15-A: B5/B2 UC15-T: B5/B1 UG96: B6/B5/B8/B2/B1 |
| 4G LTE Cat 1 bands |
FMC130-ME1: LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD:B38/B40/B41 |
| Data transfer |
LTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 170 mAh Li-Ion, 3.7 V battery (0.63 Wh) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| PHYSICAL SPECIFICATION | |
| Dimensions | 65 x 56,6 x 20,6 mm (L x W x H) |
| Weight | 55 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -20 °C to +85 °C |
| Storage temperature (without battery) | -20 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |

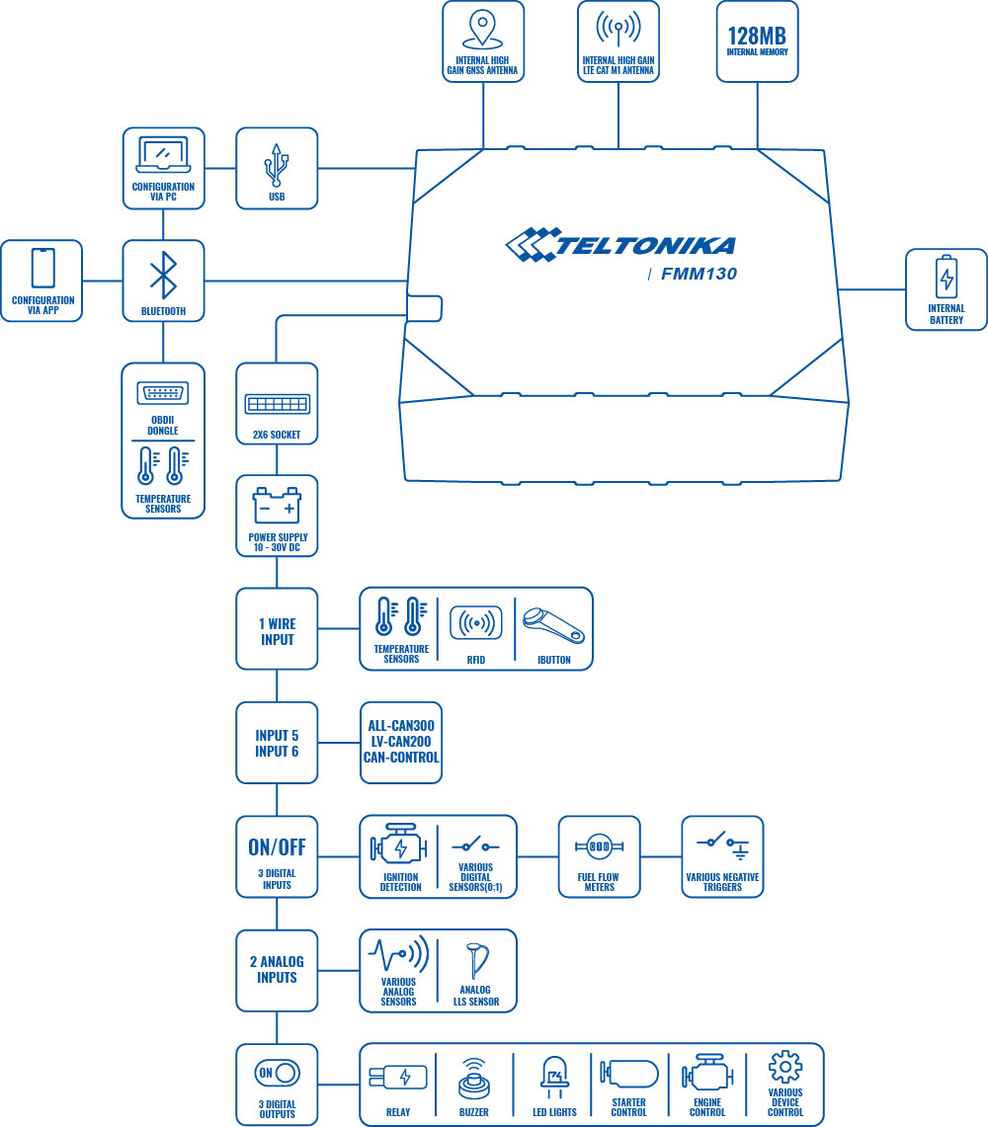

| INTERFACE | |
| Digital Inputs | 3 |
| Negative Inputs | 1 (Digital Input 2) |
| Impulse Inputs | 2 (Digital Input 1, Digital Input 2) |
| Digital Outputs | 3 |
| Analog Inputs | 2 |
| CAN Adapter inputs | 1 |
| 1-Wire | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM + eSIM |
| Memory | 128MB internal flash memory |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
