Teltonika FMM003
Plug & Play tracker for any vehicle
- 2 years warranty, no contracts
- In stock, ships in 2 business days
No payment now. Formal quote by email within 1 business day.
Description

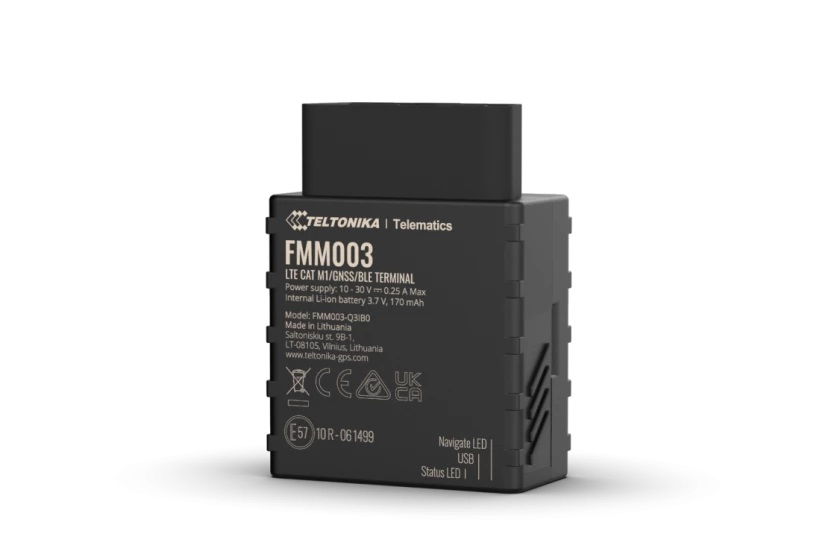

Teltonika 4G OBDII Tracker
Advanced Plug and Track real-time tracking terminal with
GNSS, 3G and Bluetooth connectivity.
Anti-theft
Receive alert and tracker your vehicle down,
if it’s being stolen.
OBDII Data
Allows reading CAN bus data from
vehicle ECU
Smart Crash detection
Ensure safety with Smart Crash detection. Get alarm
message immediately after accident.
Internal Battery
Allows device to work without external
power source.
Bluetooth
Integrated Bluetooth 4.0 LE allows usage of
various wireless sensors.

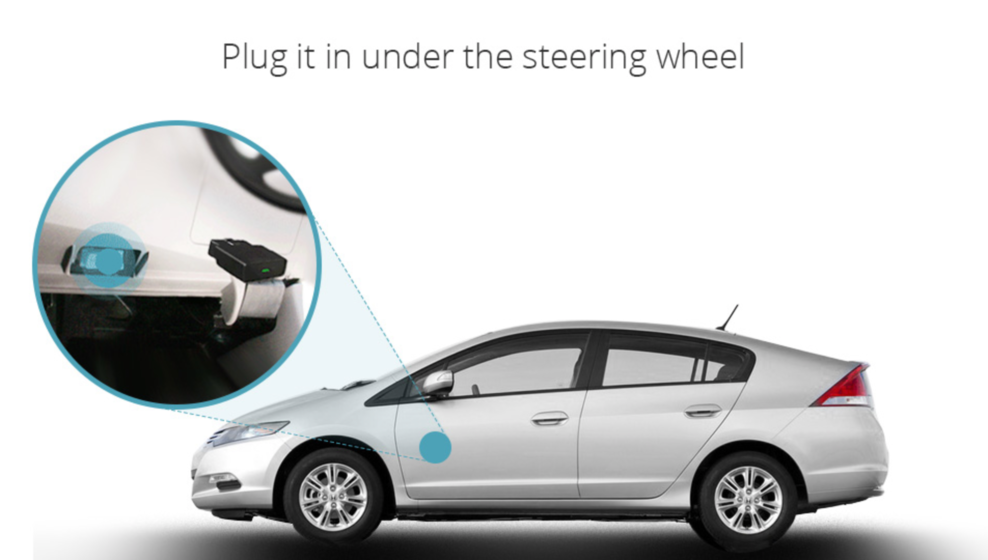

Plug & Play
Easily plug in OBDII tracker under
the steering wheel

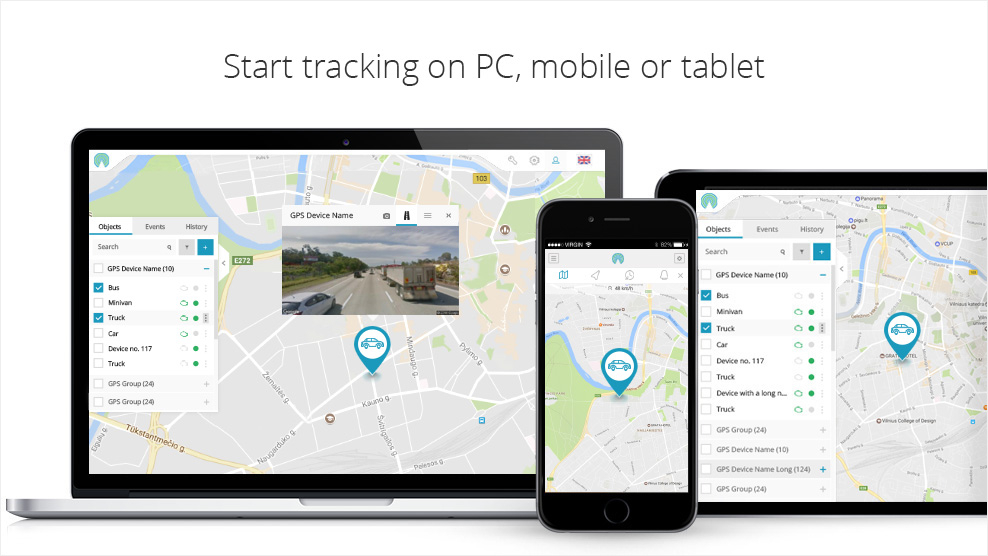

Start tracking in 1 min.
View exact location of your vehicle
real-time on PC, mobile or tablet.
Notifications
Receive alerts about different events: speeding,
stop-overs, maintenance etc.
Fuel savings
Check vehicle’s fuel consumption and
speed along the route.
Geofence zones
Get notifications when vehicle enters or exits
marked boundaries
History and reports
Get detailed reports: driving hours, stopovers,
distance traveled etc.
24/7 Support
Live international support.
Free Tracking Apps
Download Android and iPhone
tracking apps to your smartphone.
Specification
| Module | |
| Name | Quectel UC20, TM2500 |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5 |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | Li-Polymer rechargeable battery, 3.7 V, 170 mAh |
| Power consumption | At 12V < 2,2 mA (Ultra Deep Sleep), At 12V < 4,5 mA (Deep Sleep), At 12V < 5 mA (Online Sleep), At 12V < 12 mA (GPS Sleep), At 12V < 35 mA (nominal) |
| Blue-tooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset |
| Interface | |
| Digital Inputs | 1 |
| Digital Outputs | 0 |
| Analog Inputs | 0 |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | Micro USB socket |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Physical specification | |
| Weight | 63 g |
| Operating environment | |
| Operating temperature | -25 °C to +55 °C |
| Storage temperature | -40 °C to +70 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, FMB Configurator (USB, Blue-tooth), FMBT mobile application, BTAPP mobile application |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | OBD II |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM |
| Certification & Approvals | |
| Regulatory | FCC, E-Mark, RoHS, REACH |
| 33 channel |
Downloads
Use Cases
Current vehicle location, status and track history are the main aspects for all rental service providers. Prevent theft with remote car lock management, receive notifications about possible contract violations, monitor driver behavior and areas where vehicle is driven – obtain standard tracking information and gain full control of your fleet.
Insurance telematicsMain reasons for insurance pay outs are car accidents and thefts. There have been at least 7 million cases of stolen vehicles around the world every year and this number keeps growing every day; figures in traffic accident statistics are even greater. Real time tracking, warnings when theft attempt or crash is detected, with possibility to trace accidents – all this to determine culprit and reduce expenses when unforeseen event occurs.
Courier delivery serviceQuick and professional distribution of goods is the key to profit in delivery business. Route optimization can reduce your fuel expenses up to 30%; driver identification and behavior monitoring ensure high delivery standard and traceability, if any complaints need to be investigated. Gain full control of your fleet and resources with our solution.
TaxiFor Taxi Company to be competitive and profitable, you must have the most innovative technology on your command. It is not enough to deliver customer from point to point, you need to ensure safety and traceability. Communicate with driver via Bluetooth headset, send pick up destination, acquire necessary routing and fuel consumption information – manage your fleet with our solution for taxi business.
Security & emergency servicesConcept of public security has changed significantly in the past decade. Safety of our society depends on technology which allows us to monitor, track and respond to emergency calls faster than ever. With our solution you will always know current location and status of your transport, thus ensuring quick response time to any kind of situation.
Shipping
Cost
Worldwide postage and packaging is FREE.
Order processing
All orders are dispatched within 2 business days after funds are cleared.
Shipping times
- USA/Canada
- 14 - 20 working days
- Europe
- 4 - 15 working days
- Asia
- 14 - 30 working days
- Australia
- 20 - 30 working days
Order tracking
All orders are shipped by Priority International Airmail. Tracking information is provided to all buyers after shipping.
Buyers can track the order once it ships from our warehouse. You will receive a tracking number and links to our local post office page. Once the item reaches your local post office, you can also track it there.
Please note: an order cannot be tracked while it is in transit, only after it leaves our warehouse and once it reaches your local post office.
Express delivery
If you want to receive your order within 2-5 working days we can ship it by DHL, but the shipping cost is the buyer's responsibility.
Shipping policy
GPSWOX does not take any responsibility for customs delays or taxes.
Return
If the item is broken or not working properly, you have up to 7 working days to contact us (in other instances the money will be not refunded). If you would like to return an item, please send us email to sales@gpswox.com and we will respond with the return address and an identifying number for you to enclose with the returned item.
Please note: If you do not send email within 7 working days after your receive order, we will not be able to process your return.
Refund
We will process your refund through PayPal after receiving the items providing they are unused and in a saleable condition.
Return Shipping
Return shipping is paid by the buyer, unless the received item is defective or not working.
Please note: buyer must send order back to GPSWOX via a postal service, which have tracking function.
Returns Condition
All returned items will be subject to inspection. Full refund is only processed for buyers, which return items unused and returned in their original packaging. Otherwise, if return is received in not saleable condition and packaging will be broken, you will be charged 20% of the retail price of the item.
Software
GPSWOX Software - User Manual
Learn how to use this tracker with the GPSWOX platform, including live tracking, alerts, events, history, reports and mobile apps.
Watch the software guide on YouTube
