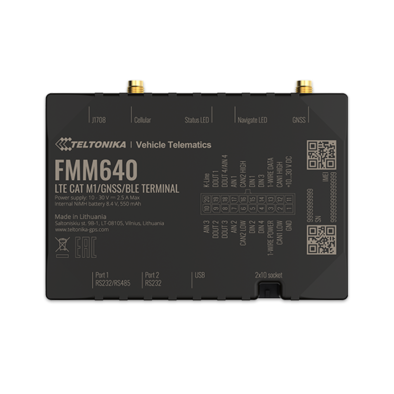

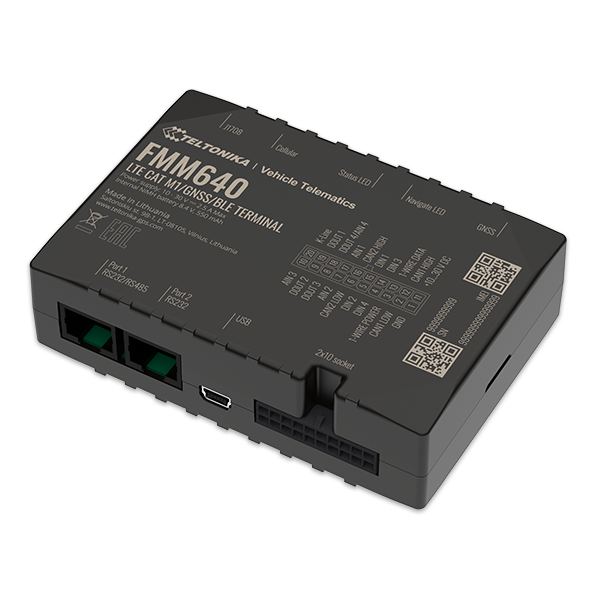

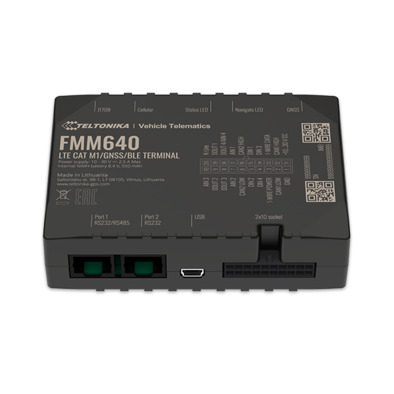

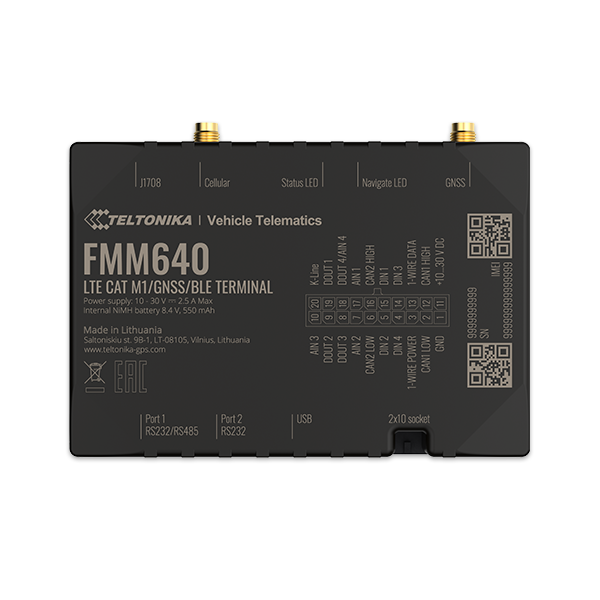

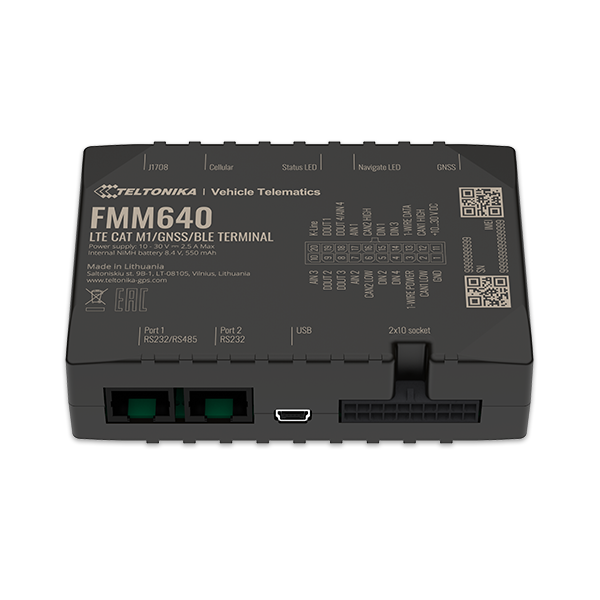

Teltonika FMM640
- 2 years warranty, no contracts
- In stock, ships in 2 business days
No payment now. Formal quote by email within 1 business day.
Description
Teltonika FMM640 is PROFESSIONAL worldwide tracker with LTE CAT M1, NB IoT connectivity, that makes this device usable with newest and most cost efficient technologies. FMM640 features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM will maximize your fleet efficiency. Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.
Specification
| MODULE | |
| Name | Quectel BG96 |
| Technology | LTE(CAT M1)/2G(GSM/GPRS)/GNSS |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | Tracking: 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | LTE CAT M1/CAT NB1/EGPRS |
| 2G bands | Quad-band 800/850/900/1900 MHz |
| 4G bands | LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 LTE TDD: B39 (for CAT M1 only) |
| Data transfer | LTE FDD: Max. 375Kbps (DL)/Max.375Kbps (UL) LTE TDD: Max. 32Kbps (DL)/Max. 70Kbps (UL) GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL) |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 550 mAh Ni-Mh, 8,4 V battery |
| PHYSICAL SPECIFICATION | |
| Dimensions | 104,1 x 76,8 x 31,5 mm (L x W x H) |
| Weight | 197 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| INTERFACE | |
| Digital Inputs | 4 |
| Digital Outputs | 4 |
| Analog Inputs | 4 |
| 1-Wire interface | 1 |
| RS232 | 2 |
| RS485 | 1 |
| CAN J1939 | 2 |
| J1708 | 1 |
| K-line | 1 |
| GNSS antenna | External High Gain |
| Cellular antenna | External High Gain |
| USB | 2.0 Mini-USB |
| LED indication | 2 status LED lights |
| SIM | 2x SIM Card (Dual-SIM) |
| Memory | 2MB internal flash memory and external Micro SD card up to 32 GB |
| FEATURES | |
| Movement detection | Accelerometer |
| Scenarios | Green/Eco Driving, Over Speeding detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification |
| Functionalities | Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking |
| Supported peripherals | Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS, Ultrasonic level sensor |
| Ignition detection | Digital Input, Accelerometer, External Power Voltage |
Use cases
Modern day logistics require a lot of information for business optimization, it is not enough to get current GPS coordinate of your vehicle location. With fuel consumption, driven distance and many other parameters you are able to monitor and regulate your fleet resources, this way all expenses would be accounted. With solution for driver activities monitoring you will have full control of your driver.
Security & emergency servicesConcept of public security has changed significantly in the past decade. Safety of our society depends on technology which allows us to monitor, track and respond to emergency calls faster than ever. With our solution you will always know current location and status of your transport, thus ensuring quick response time to any kind of situation.
Probably most important aspect of construction machinery management is fuel consumption data. Powerful cranes and high capacity concrete mixers compared to light vehicles, use huge amounts of fuel during short periods of time – high chance of fuel theft if work time is accounted only on paper. Take full control of your fleet, workers and resources.
Public transportPublic transport requires a lot of management. It is always important to know where vehicles are, how long they drive and rest – all this to achieve best efficiency. With fuel data and other various parameters you are able to monitor and control your fleet resources, thus cutting expenses to minimum. With solution for driver or even passenger monitoring you will have full information about people who were using your transport.
AgricultureAgricultural machinery has advanced a lot in recent years, technology like modern tractors or harvesters usually costs more than a sports car – it is essential to keep track of such valuable assets. With our solution you will have full control of current position, driver activities and receive various information from harvesting machinery.
Downloads
Accessories
Shipping
Cost
Worldwide postage and packaging is FREE.
Order processing
All orders are dispatched within 24 hours after funds are cleared.
Shipping times
- Europe
- 4 - 15 working days
- Asia
- 14 - 30 working days
- Australia
- 20 - 30 working days
Order tracking
All orders are shipped by Priority International Airmail. Tracking information is provided to all buyers after shipping.
Buyers can track the order once it ships from our warehouse. You will receive a tracking number and links to our local post office page. Once the item reaches your local post office, you can also track it there.
Please note: an order cannot be tracked while it is in transit, only after it leaves our warehouse and once it reaches your local post office.
Express delivery
If you want to receive your order within 2-5 working days we can ship it by DHL, but the shipping cost is the buyer's responsibility.
Shipping policy
GPSWOX does not take any responsibility for customs delays or taxes.
Return
If the item is broken or not working properly, you have up to 7 working days to contact us (in other instances the money will be not refunded). If you would like to return an item, please send us email to sales@gpswox.com and we will respond with the return address and an identifying number for you to enclose with the returned item.
Please note: If you do not send email within 7 working days after your receive order, we will not be able to process your return.
Refund
We will process your refund through PayPal after receiving the items providing they are unused and in a saleable condition.
Return Shipping
Return shipping is paid by the buyer, unless the received item is defective or not working.
Please note: buyer must send order back to GPSWOX via a postal service, which have tracking function.
Returns Condition
All returned items will be subject to inspection. Full refund is only processed for buyers, which return items unused and returned in their original packaging. Otherwise, if return is received in not saleable condition and packaging will be broken, you will be charged 20% of the retail price of the item.
Software

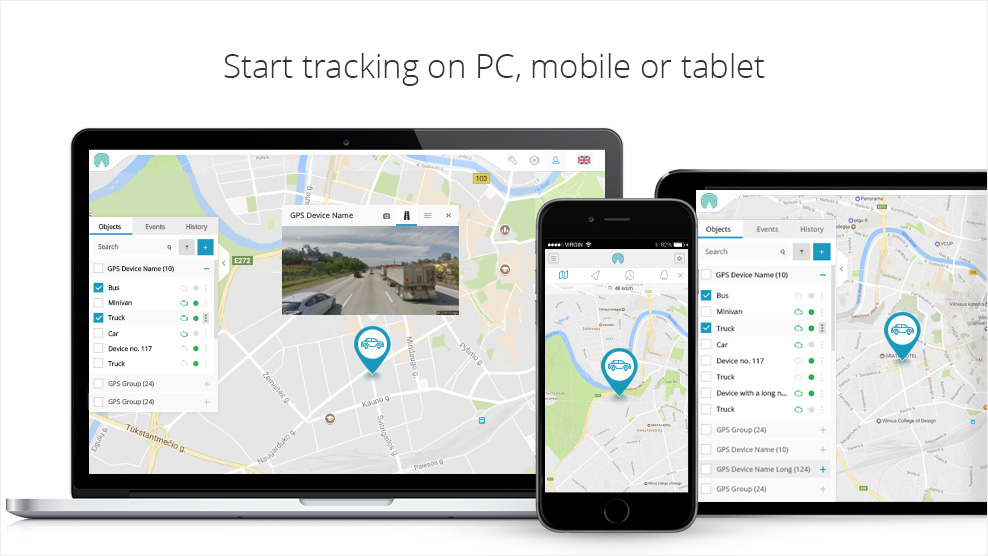

GPSWOX Software - User Manual
