Teltonika SIMPLE-CAN
- 2 years warranty, no contracts
- In stock, ships in 2 business days
No payment now. Formal quote by email within 1 business day.
Description
SUPPORTED DEVICES

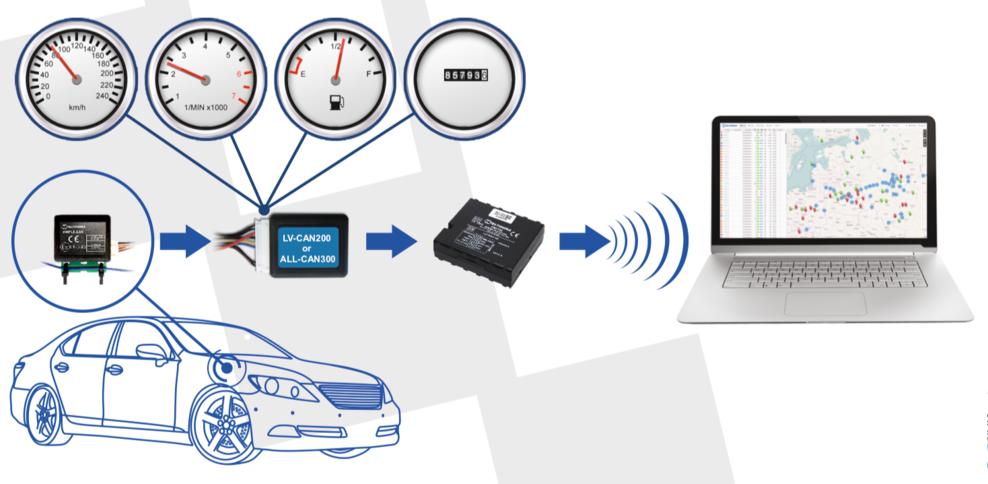

To achieve contactless data reading, SIMPLE-CAN adapter should be used in combination with LV-CAN200, ALL-CAN300 or FM6320/FMB630 to read J1939 CAN data.
BENEFITS OF SIMPLE-CAN
Contactless connection to the CAN bus of the vehicle! It reads can bus data through the isolation of wires without damaging them and forwards signals to tracking device.
Specifications

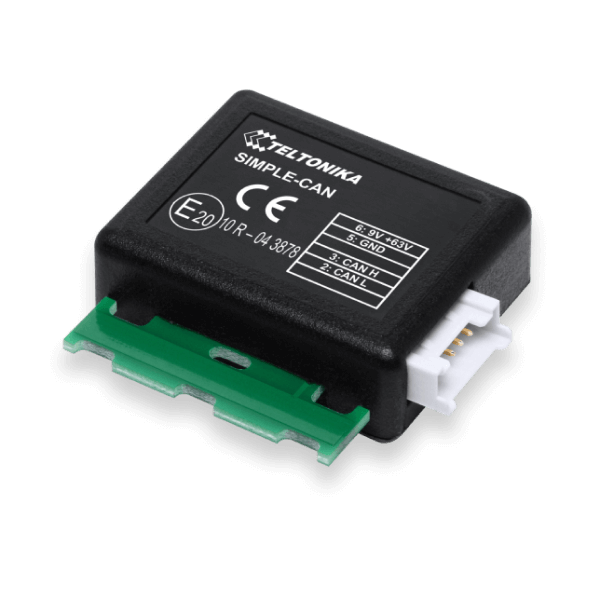

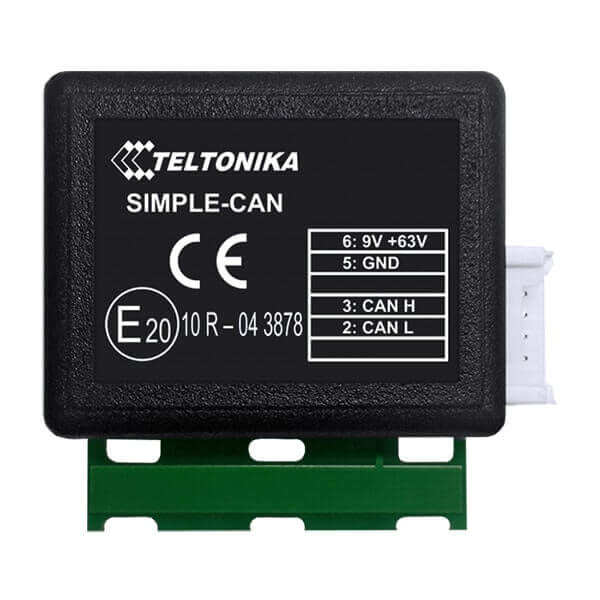

SIMPLE-CAN is contactless reader used to read vehicle CAN data with LV-CAN200, ALL-CAN300.
- SIMPLE-CAN collects vehicle data from CAN bus without damaging the wires
- Powered from on-board power source

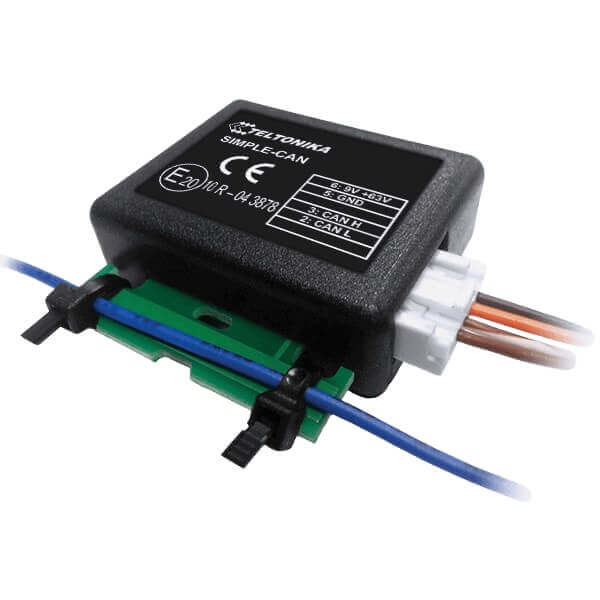

- Reads the signals through the isolation of CAN bus wires
- Easy to install and operate
- LED indication for working modes
- SIMPLE-CAN can be used in conjunction with the LV-CAN200 or ALL-CAN300
- SIMPLE-CAN can be used with FM5300 and FM6320 to read FMS J1939 data
- If LV-CAN200 or ALL-CAN300 connection requires two CAN lines to get all data, then you need two SIMPLE-CAN readers
- Vehicle manufacturer's warranty is not violated!
- Power supply voltage 9-63 V
- Power supply current:
- Active: 12V — 8.3mA, 24V — 4.3mA
- Standby: 12V — 1.6mA, 24V — 0.91mA
- CAN-BUS speeds from 33,33 to 500 kb/s
- Automatically sets CAN Low, CAN High polarity
- Automatically adjusts signal level and speed
